Antriebsrad (Sprocket) MOROOKA MST1500
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of track-driven machine models.
From mini excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated, and are generally used for excavators or other machines with an undercarriage operating in similar applications.

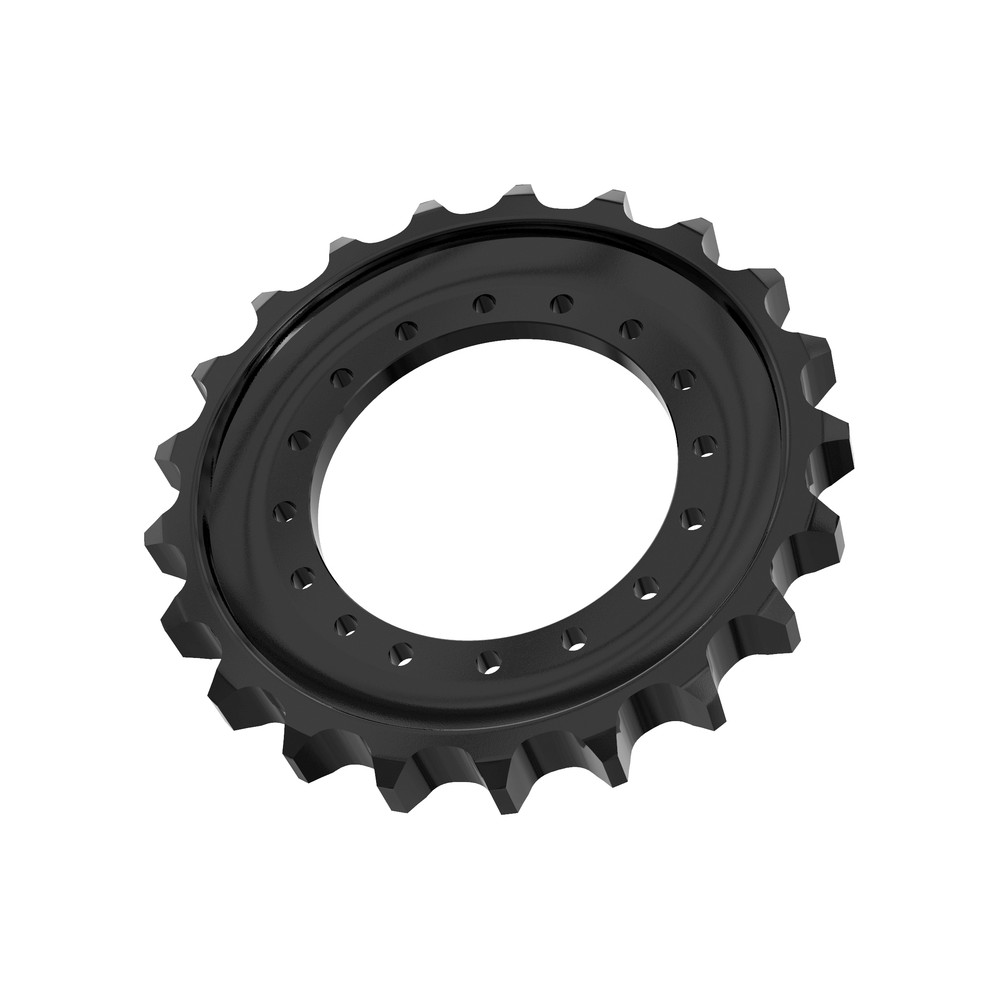

Drive sprocket ITR for MOROOKA MST1500
The ITR drive wheel range includes equipment from JCB® 8008 (machine operating weight 0.95 tons) to KOMATSU® PC 1250 (machine operating weight 110 tons).
Drive sprocket ITR - Functionality
Bolt mounting. Tightening method in the machine's user manual. It is important to obtain information on the mounting of the sprocket bolt and torque specifications.
Functions: Transfer of drive loads from the main transmission to the track through bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to fit the bushings precisely. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can extend the lifespan of the sprocket. Drive wheel rings are forged or cast from deep-hardened steel, which provides nearly twice the hardening depth compared to regular steel. Material SCMn3A. Hardening 50 – 55 HRC.
The production of ITR sprockets and segments for mini excavators is suitable for a wide selection of track-driven machine models.
