Antriebsrad HINOWA DM15
Production of ITR sprockets and segments for mini-excavators is suitable for a wide selection of track-driven machine models.
From mini-excavators to mining machines. Sprockets are produced through casting, while segments are manufactured by forging.
Sprockets are cast products, machined, and heat-treated, and are generally used for excavators or other machines with a chassis operating in similar applications.

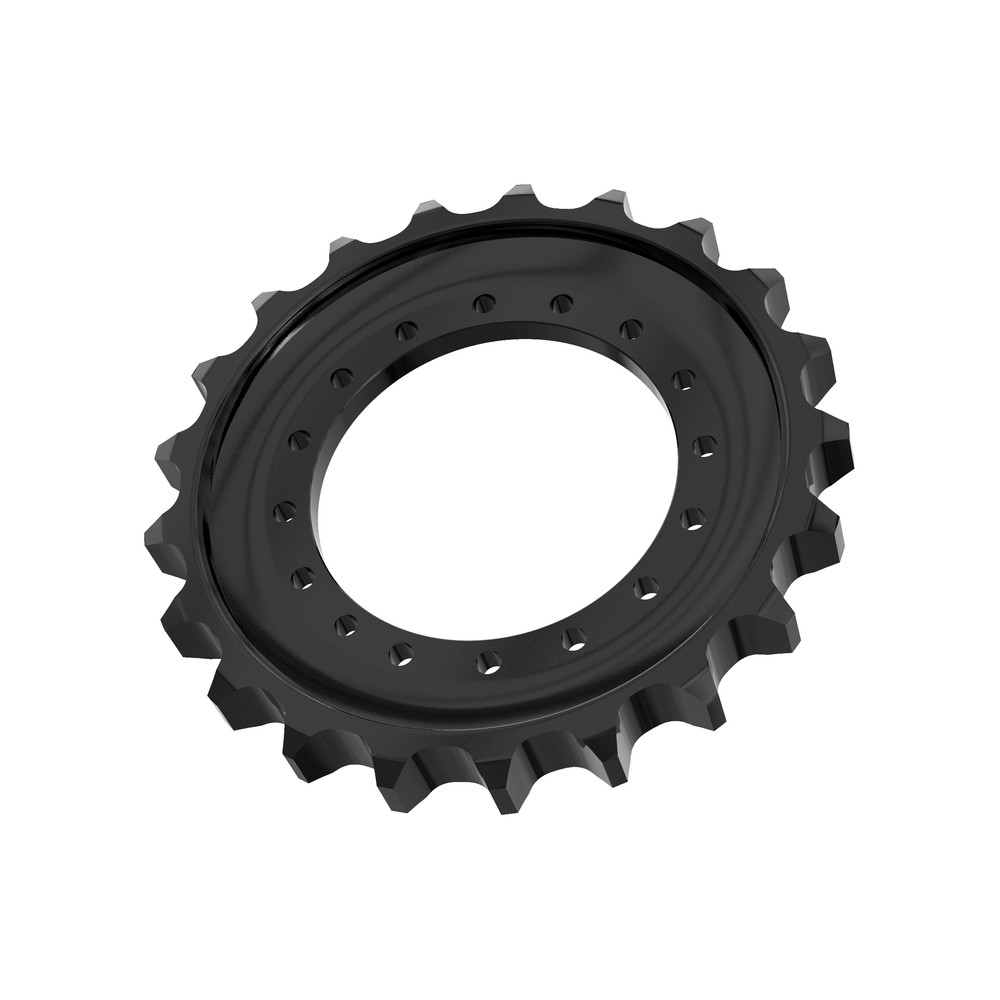

Drive sprocket ITR for HINOWA DM15
The ITR drive wheel range includes equipment from JCB® 8008 (operating weight of the machine 0.95 tons) to KOMATSU® PC 1250 (operating weight of the machine 110 tons).
Drive sprocket ITR - Functionality
Screw mounting. The tightening method is in the machine's operating manual. It is important to obtain information about the installation of the sprocket screw and the torque specification.
Functions: Transmitting drive loads from the main transmission to the track through bushings. Durability equal to at least one side of the bushing, resistance to cracking. Sprockets are produced to fit precisely with the bushings. Strictly controlled production processes to ensure proper equipment assembly. Advantages of bolted sprockets: Limited maintenance and shorter downtimes. No risk of misalignment. Reversible - transferring wheels to opposite sides of the machine can increase the sprocket's lifespan. Drive wheel rings are forged or cast from deeply hardened steel, which provides almost twice the hardening depth of regular steel. Material SCMn3A. Hardening 50 – 55 HRC.
Production of ITR sprockets and segments for mini-excavators is suitable for a wide selection of track-driven machine models.
